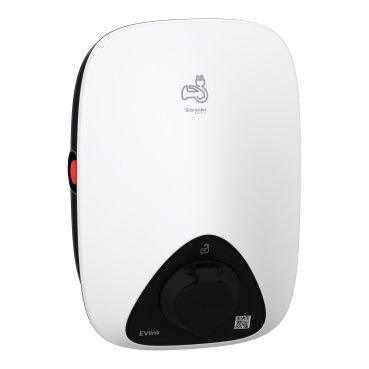

SCHNEİDER ELEKTRİK DUVAR TİPİ / EVlink Home, 3P+N, 1xT2, 11kW, 16A, with RDC-DD
%45
indirim
66.752,08 TL
36.713,64 TL
KDV Dahil
6.913,79 TL den başlayan taksitlerle!
| Range | EVlink |
|---|---|
| Product name | EVlink Home |
| Product or component type | Charging station |
| Poles description | 3P + N |
| Mounting mode | Wall-mounted |
| Offer type | Basic |
| Max power | 11 kW 16 A 400 V |
| Number of charge point | 1 |
| Connection to the vehicle | Socket-outlet T2 front face |
| Quantity per set | Set of 1 |
| rated supply voltage | 400 V AC 50 Hz +/- 10 % |
|---|---|
| Earthing system | TT TN-S |
| Number of inputs | 1 |
| Input type | Auxiliary for dynamic energy management |
| Control type | Red 1 emergency stop, function: 1 push-button |
| Local signalling | Red, green and blue 1 LED, function: status indication |
| Protection type | Earth-leakage protection |
| Height | 409 mm |
| Width | 282 mm |
| Depth | 148 mm |
| Net weight | 5.6 kg |
| Colour | White (RAL 9003) |
| Standards | EN 61851 IEC 61851-1 EN 61000-6-1 EN 61000-6-3 |
| Product certifications | CE UKCA |
| Maximum supply current | 16 A |
| IP degree of protection | IP54 conforming to EN/IEC 60529 |
|---|---|
| IK degree of protection | IK10 conforming to IEC 62262 |
| Ambient air temperature for operation | -30…50 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.5 cm |
| Package 1 Width | 39.5 cm |
| Package 1 Length | 49.0 cm |
| Package 1 Weight | 5.152 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 104.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 94.5 kg |
