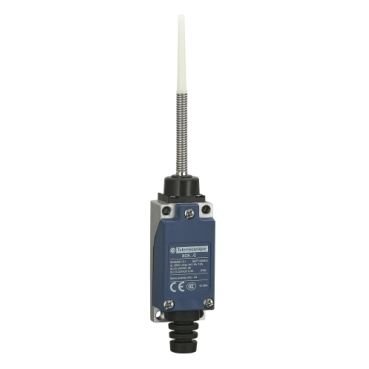

Telemecanique Sensors XCE181C XCE Nihayet Şalteri
%52
indirim
1.372,80 TL
658,94 TL
KDV Dahil
658,94 TL den başlayan taksitlerle!
Contacts insulation form
Za
Minimum release force
0.04 N
Minimum actuation speed
5 mm/s
Maximum actuation speed
1 m/s
Maximum operating rate
120 cyc/mn
Contact code designation
A300, AC (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1
R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
Maximum resistance across terminals
25 MOhm
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60664
Electrical durability
800000 cycles, AC, 3 A, 220 V
Mechanical durability
10000000 cycles
Width
28 mm
Height
172 mm
Depth
25 mm
Net weight
0.108 kg
Terminals description ISO n°1
(3-4-1-2)OF
