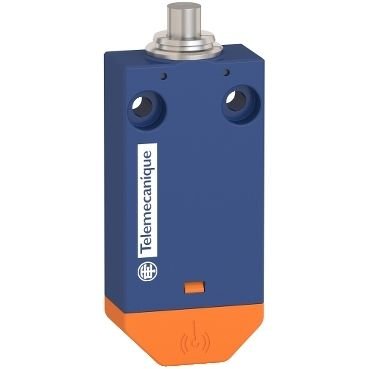

Telemecanique Sensors XCMW110 Kablosuz Minyatür Nihayet Şalteri
%52
indirim
10.930,41 TL
5.246,60 TL
KDV Dahil
1.887,90 TL den başlayan taksitlerle!
Body material
Plastic
Head material
Metal
Lever material
Metal
Fixing mode
By 2 screws
Type of operator
Spring return plunger metal
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Communication network type
ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
Electrical composition code
PW1
Emission power
3 mW
Response time
<= 2 ms
Maximum sensing distance
100 m in free field
300 m with external antenna
25 m in industrial environment
300 m with external antenna
25 m in industrial environment
Contact operation
Snap action
Number of steps
1
Maximum force for tripping
50 N
Maximum actuation speed
0.1 m/s
Maximum operating rate
60 cyc/mn
Mechanical durability
400000 cycles
Maximum switching operation per year
3600
Width
30.0 mm
Height
74 mm
Depth
16.0 mm
Net weight
0.039 kg
