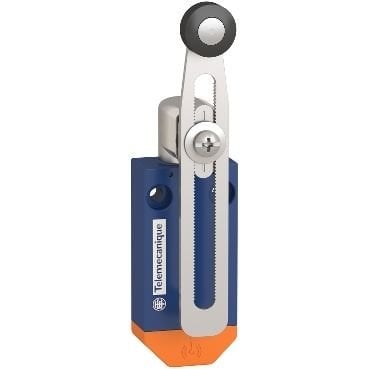

Telemecanique Sensors XCMW145 Kablosuz Minyatür Nihayet Şalteri
%52
indirim
12.414,84 TL
5.959,12 TL
KDV Dahil
2.144,29 TL den başlayan taksitlerle!
Body material
Plastic
Head material
Metal
Lever material
Metal
Fixing mode
By 2 screws
Type of operator
Spring return roller lever thermoplastic
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Communication network type
ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
Electrical composition code
PW1
Emission power
3 mW
Response time
<= 2 ms
Maximum sensing distance
100 m in free field
300 m with external antenna
25 m in industrial environment
300 m with external antenna
25 m in industrial environment
Contact operation
Snap action
Number of steps
1
Minimum torque for tripping
0.5 N.m
Maximum actuation speed
0.1 m/s
Maximum operating rate
60 cyc/mn
Mechanical durability
400000 cycles
Maximum switching operation per year
3600
Width
30.0 mm
Height
157 mm
Depth
16.0 mm
Net weight
0.09 kg
