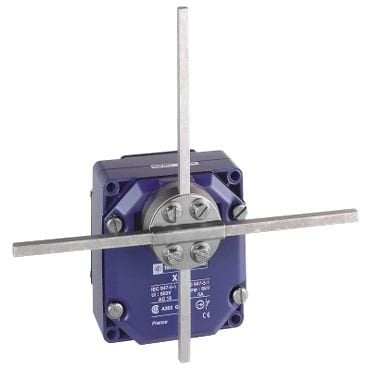

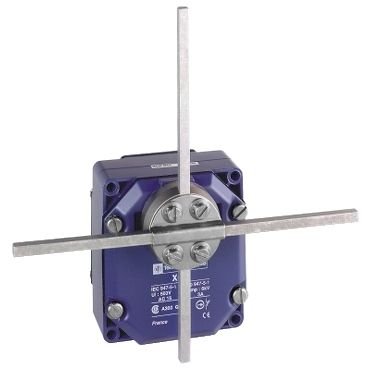

Telemecanique Sensors XCRF57 Uygulama Plastik
%52
indirim
11.172,00 TL
5.362,56 TL
KDV Dahil
1.929,63 TL den başlayan taksitlerle!
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
For hoisting and mechanical handling applications
Device short name
XCR
Sensor design
-
Body type
Fixed
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Stay put crossed rods lever metal square rod 6 mm
Type of approach
Lateral approach, 2 directions
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Number of poles
4
Contacts type and composition
2 x (1 NC + 1 NO)
Contact operation
Slow-break, break before make
Contact block per direction [control circuit]
1 per direction
Positive opening
With
