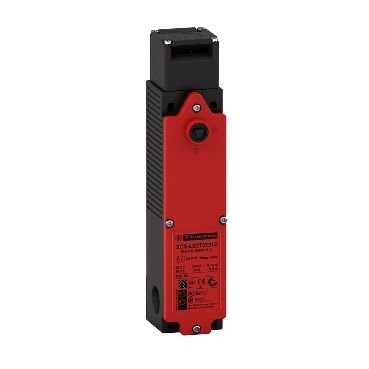

Telemecanique Sensors XCSLE3737312 Güvenlik Nihayet Şalteri
%50
indirim
13.170,30 TL
6.585,15 TL
KDV Dahil
1.240,09 TL den başlayan taksitlerle!
Range of product
Telemecanique Safety switches XCS
Product or component type
Safety switch
Component name
XCSLE
Design
Slim
Material
Plastic
Head type
Key operated turret head
Contacts type and composition
2 NC + 1 NO
Contact operation
Slow-break, break before make
Solenoid contacts type and composition
2 NC + 1 NO (slow-break, break before make)
Cable entry
3 entries tapped for M20 x 1.5
Electromagnet interlocking
Locking on de-energisation and unlocking on energisation of solenoid
[Us] rated supply voltage
24 V - 15...10 %
Cable outer diameter
7…13 mm
Electrical connection
Spring terminal, clamping capacity: 1 x 1.5 mm² flexible or solid cable
Spring terminal, clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends
Spring terminal, clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends
Number of poles
3
Locking options description
With interlocking, locking by solenoid
Local signalling
1 LED (orange) for actuator withdrawn
1 LED (green) for actuator inserted and locked
1 LED (green) for actuator inserted and locked
Signalling circuit voltage
24 V
