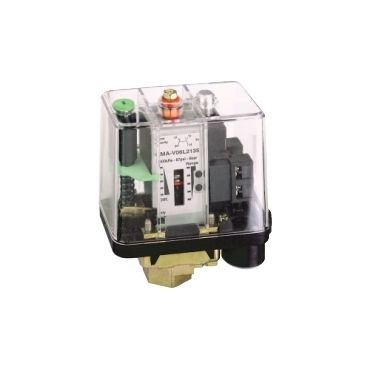

Telemecanique Sensors XMAV12L2135 Optimum Basınç Anahtarı
%50
indirim
5.833,10 TL
2.916,55 TL
KDV Dahil
1.049,47 TL den başlayan taksitlerle!
Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Pressure sensor name
XMA
Pressure rating
12 bar
Contacts type and composition
1 C/O snap action
Controlled fluid
Air (0…55 °C)
Fresh water (0…55 °C)
Sea water (0…55 °C)
Fresh water (0…55 °C)
Sea water (0…55 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Cable entry
2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm²
Electrical circuit type
Control circuit
[In] rated current
3 A (Ue = 120 V), AC-15, B300
1.5 A (Ue = 240 V), AC-15, B300
0.1 A (Ue = 250 V), DC-13, R300
1.5 A (Ue = 240 V), AC-15, B300
0.1 A (Ue = 250 V), DC-13, R300
Setting
External
Colour of cover
Transparent
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Fixed differential
Local display
Without
Enclosure material
PC impregnated with Lexan 123
Adjustable range of switching point on rising pressure
1.3…12 bar
Adjustable range of switching point on falling pressure
0.3…10.3 bar
Pressure actuator
Diaphragm
Possible differential minimum at high setting
1.7 bar
Possible differential minimum at low setting
1 bar
Destruction pressure
30 bar
Materials in contact with fluid
Chromated zinc alloy
Canvas covered nitrile
Canvas covered nitrile
Maximum permissible accidental pressure
27 bar
