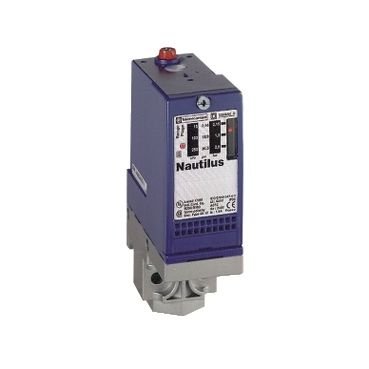

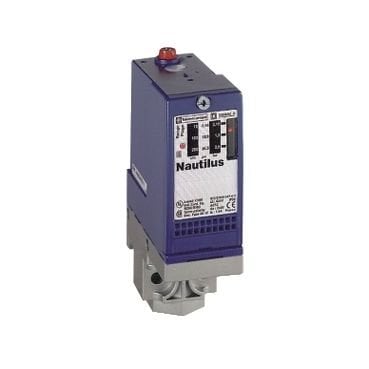

Telemecanique Sensors XMLA500D2S11 Optimum Presostat
%50
indirim
9.681,48 TL
4.840,74 TL
KDV Dahil
911,59 TL den başlayan taksitlerle!
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLA
Pressure rating
500 bar
Controlled fluid
Hydraulic oil (0…160 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
1 connector Pg 13
1 connector Pg 13
AWG gauge
AWG 20...AWG 14
Cable entry
Cable gland 9…13 mm
Contacts type and composition
1 C/O
Product specific application
-
Pressure switch type of operation
Detection of 1 single threshold
Electrical circuit type
Control circuit
Scale type
Fixed differential
Local display
With
Adjustable range of switching point on rising pressure
30…500 bar
Adjustable range of switching point on falling pressure
10…455 bar
Maximum permissible accidental pressure
1125 bar
Destruction pressure
2250 bar
Pressure actuator
Piston
Materials in contact with fluid
Brass
FPM, FKM
PTFE
Steel
Stainless steel
FPM, FKM
PTFE
Steel
Stainless steel
Enclosure material
Zinc alloy
[In] rated current
3 A, B300, AC-15 (Ue = 120 V) conforming to IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to IEC 60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to IEC 60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to IEC 60947-5-1
