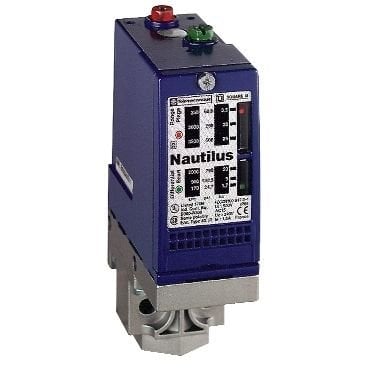

Telemecanique Sensors XMLB035A2S11 Optimum Presostat
%50
indirim
12.123,42 TL
6.061,71 TL
KDV Dahil
1.141,52 TL den başlayan taksitlerle!
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electromechanical pressure sensor
Pressure sensor type
Electromechanical pressure sensor
Device short name
XMLB
Pressure rating
35 bar
Controlled fluid
Air (0…70 °C)
Fresh water (0…70 °C)
Hydraulic oil (0…70 °C)
Fresh water (0…70 °C)
Hydraulic oil (0…70 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
1 connector Pg 13
1 connector Pg 13
AWG gauge
AWG 20...AWG 14
Cable entry
Cable gland 9…13 mm
Contacts type and composition
1 C/O
Product specific application
-
Pressure switch type of operation
Regulation between 2 thresholds
Electrical circuit type
Control circuit
Scale type
Adjustable differential
Local display
With
Adjustable range of switching point on rising pressure
3.5…35 bar
Adjustable range of switching point on falling pressure
1.8…32.45 bar
Possible differential maximum at high setting
20 bar
Maximum permissible accidental pressure
80 bar
Destruction pressure
160 bar
Pressure actuator
Diaphragm
Materials in contact with fluid
Brass
Zinc alloy
Nitrile
Zinc alloy
Nitrile
Enclosure material
Zinc alloy
[In] rated current
3 A, B300, AC-15 (Ue = 120 V) conforming to IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to IEC 60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to IEC 60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V) conforming to IEC 60947-5-1
