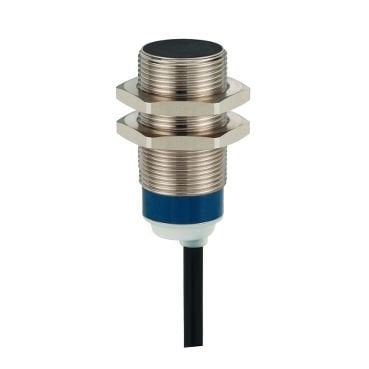

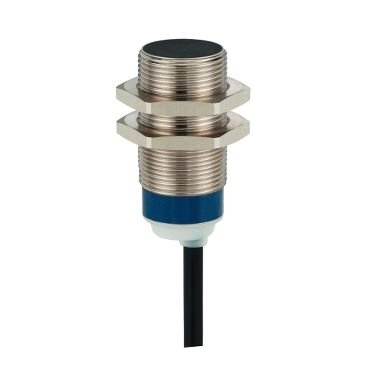

Telemecanique Sensors XS518B1PAL2 M18 kesik kafa
%52
indirim
1.645,03 TL
789,62 TL
KDV Dahil
789,62 TL den başlayan taksitlerle!
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
-
Sensor name
XS5
Sensor design
Cylindrical M18
Size
39 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Metal
Type of output signal
Discrete
Wiring technique
3-wire
[Sn] nominal sensing distance
5 mm
Discrete output function
1 NO
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Cable
Cable length
2 m
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA DC with overload and short-circuit protection
IP degree of protection
IP68 double insulation conforming to IEC 60529
IP69K conforming to DIN 40050
IP69K conforming to DIN 40050
