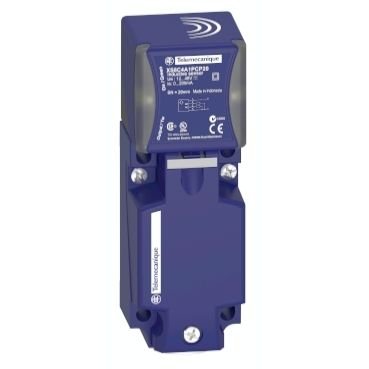

Telemecanique Sensors XS8C4A1PCG13 Kübik Format
%52
indirim
3.872,59 TL
1.858,84 TL
KDV Dahil
350,05 TL den başlayan taksitlerle!
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Mobile equipment
Sensor name
XS8
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
4-wire
[Sn] nominal sensing distance
20 mm
Discrete output function
1 NO + 1 NC
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Screw-clamp terminals, 4 x 1.5 mm²
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
