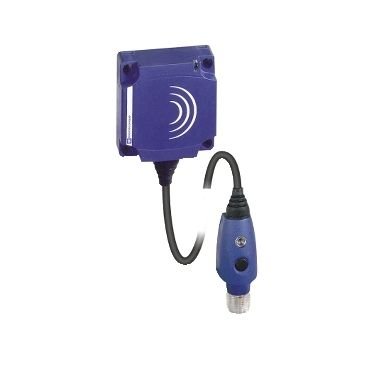

Telemecanique Sensors XS9C11RMBL01U20 UygulamaHız Bekçisi
%52
indirim
13.475,32 TL
6.468,15 TL
KDV Dahil
1.218,06 TL den başlayan taksitlerle!
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Product or component type
Sensor
Sensor type
Inductive proximity sensor
Device application
Rotation monitoring
Sensor name
XS9
Sensor design
Flat form 40 x 40 x 15
Size
15 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
2-wire
[Sn] nominal sensing distance
15 mm
Discrete output function
1 NC
Output circuit type
AC/DC
Electrical connection
Remote male connector 1/2"20 UNF, 3 pins
Cable length
0.15 m
[Us] rated supply voltage
24...240 V AC/DC 50/60 Hz
Switching capacity in mA
5...200 mA DC
5...300 mA AC
5...300 mA AC
IP degree of protection
IP67 double insulation conforming to IEC 60529
