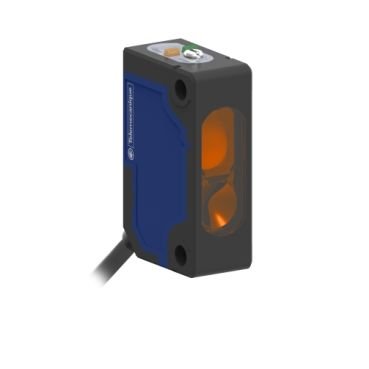

Telemecanique Sensors XUM8APXBL2 Arka plan bastırıcılı cisimden yansımalı
%50
indirim
4.108,09 TL
2.054,04 TL
KDV Dahil
386,81 TL den başlayan taksitlerle!
Enclosure material
PBT
Lens material
PMMA
Maximum sensing distance
0.30 m
Output type
Solid state
Wire insulation material
PVC
Status LED
Stability: 1 LED (green)
Output state: 1 LED (orange)
Output state: 1 LED (orange)
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply voltage limits
10…30 V DC
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
<= 1000 Hz
Maximum voltage drop
<2 V (closed state)
Current consumption
30 mA no-load
Maximum delay first up
100 ms
Maximum delay response
0.5 ms
Maximum delay recovery
0.5 ms
Setting-up
Sensitivity by potentiometer
Depth
27 mm
Height
33 mm
Width
10 mm
Net weight
0.063 kg
