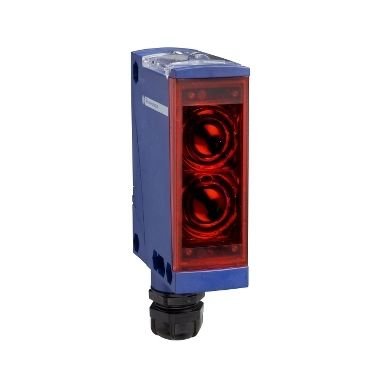

Telemecanique Sensors XUX0ARCTT16 Osiconsept Kompakt
%52
indirim
11.774,55 TL
5.651,78 TL
KDV Dahil
1.064,33 TL den başlayan taksitlerle!
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose multimode
Electronic sensor type
Photo-electric sensor
Sensor name
XUX
Sensor design
Compact 92 x 71
Detection system
Multimode
Material
Plastic
Type of output signal
Discrete
Supply circuit type
AC/DC
Wiring technique
5-wire
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
Product specific application
-
Emission
Infrared diffuse
Infrared diffuse with background suppression
Infrared thru beam
Red polarised reflex
Infrared diffuse with background suppression
Infrared thru beam
Red polarised reflex
[Sn] nominal sensing distance
11 m polarised reflex need reflector XUZC50
40 m thru beam need a transmitter XUX0ARCTT16T
2 m diffuse
1.3 m diffuse with background suppression
40 m thru beam need a transmitter XUX0ARCTT16T
2 m diffuse
1.3 m diffuse with background suppression
