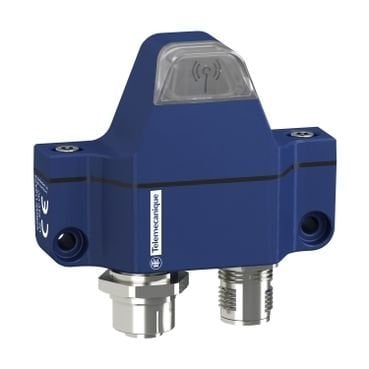

Telemecanique Sensors XZBWE112A24 Kablosuz Bağlantı Aksesuarı
%52
indirim
14.922,87 TL
7.162,98 TL
KDV Dahil
2.577,48 TL den başlayan taksitlerle!
[Us] rated supply voltage
24 V DC, <15 mA (-15...20 %)
Contacts type and composition
NO
Discrete input type
NPN or PNP for sensor
Supply voltage limits
20.4…29 V DC
Power consumption in W
0.29 W at 24 V DC
Maximum supply current for sensors
100 mA at 24 V without overload protection (-15...20 %)
Voltage state 1 guaranteed
20.4...< 24 V for input
Current state 1 guaranteed
1.6 mA (input)
Voltage state 0 guaranteed
> 0...7.2 V for input
Current state 0 guaranteed
<= 1.5 mA (input)
Response time
< 30 ms
Protection type
External fuse, fast blow, 400 mA
Communication port protocol
Zigbee conforming to IEEE 802.15.4
Zigbee profile
Green power
Input frequency
0.5 Hz
Maximum sensing distance
100 m in free field
25 m in industrial environment
25 m in industrial environment
Local signalling
Sensor output: 1 LED green or orange for on/off
LED blinking for no data transmission
LED blinking for no data transmission
Electrical connection
Sensor: 1 female connector M12, 5
Power supply: 1 male connector M12, 4
Power supply: 1 male connector M12, 4
Marking
CE
CULus
FCC
IC
CULus
FCC
IC
Height
65 mm
Depth
23 mm
Width
68 mm
Net weight
0.051 kg
